TiNi™ Ejector Release Mechanism (ERM)

High Load Holding Capability and Fast Actuation Time

The EBAD TiNi™ Ejector Release Mechanism (ERM) is a uniquely simple and effective device which offers both high load holding capability and fast actuation time. The Actuator “Coupler” acts as a detachable Nut and may be used to support and release loads up to 4000 lbf.


Flight Qualified – The ERM is a derivative of the EBAD TiNi™ Pinpuller product line and was first flight qualified in March of 2001.

NEA (Non-Explosive Actuators) – As with all EBAD TiNi™ products, the ERM is non-pyrotechnic and field reset-able with a minimum qualified life of 50 cycles.

Field Reset-able and Reliable – The ERM can be reset within seconds while still attached to the structure via a simple tool provided by EBAD.

Redundant Firing Circuit – As with all TiNi™ Actuators a redundant SMA circuit is incorporated. This provides complete electrical redundancy as well as mechanical redundancy for the critical TiNi™ trigger element.

Fast Acting – All TiNi™ ERMs can be actuated with a standard pyro pulse of only 25 milliseconds or less.

Auto Shut-Off Switches – Simple Auto Shut Off Switches are incorporated into each ERM to protect the TiNi™ Trigger.  This makes them very “user friendly” and operable from a wide range of current and voltages.

Misalignment Protection –  All ERMs have a swivel feature such that the Actuator can rotate +/-5 degrees within its mounting enclosure.  This is an important feature which protects against binding due to possible misalignment, and or instances where the deployable traverses an arc after release (such as in hinged assemblies).

ERM Options

(Please use the tabs below to see different product options)

The EBAD TiNi™ E250 ERM (Ejector Release Mechanism) is an effective way to support and release spacecraft deployables.  The 6-32 size attaching screw can be preloaded into the coupler to generate 250 lbf (1112 N) of preload. The ERM is simple to use and easy to reset and offers the same key attributes as all of our legacy products including:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.


The EBAD TiNi™ E500 ERM (Ejector Release Mechanism) is an effective way to support and release spacecraft deployables.  The 8-32 size attaching screw can be preloaded into the coupler to generate 500 lbf (2224 N) of preload. The ERM is simple to use and easy to reset and offers the same key attributes as all of our legacy products including:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.


E500 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

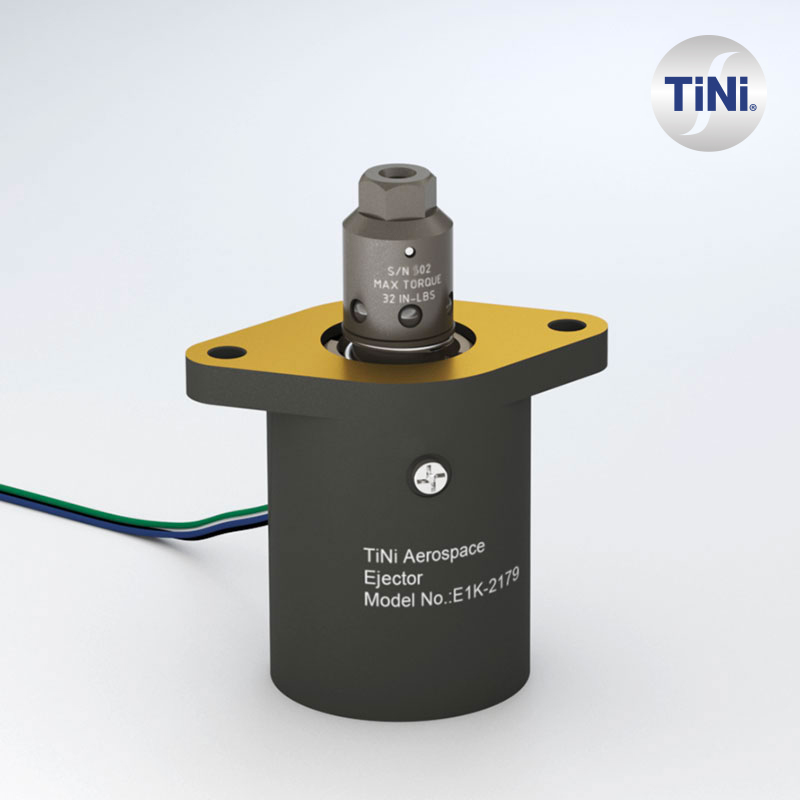

The EBAD TiNi™ E1000 ERM (Ejector Release Mechanism) is an effective way to support and release spacecraft deployables.  The 10-32 size attaching screw can be preloaded into the coupler to generate 1000 lbf (4448 N) of preload. The ERM is simple to use and easy to reset and offers the same key attributes as all of our legacy products including:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.


E1000 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The EBAD TiNi™ E2000 ERM (Ejector Release Mechanism) is an effective way to support and release spacecraft deployables.  The 1/4-28 size attaching screw can be preloaded into the coupler to generate 2000 lbf (8900 N) of preload. The ERM is simple to use and easy to reset and offers the same key attributes as all of our legacy products including:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.


E2000 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The EBAD TiNi™ E4000 ERM (Ejector Release Mechanism) is an effective way to support and release spacecraft deployables.  The 3/8-24 size attaching screw can be preloaded into the coupler to generate 4000 lbf (17800 N) of preload. The ERM is simple to use and easy to reset and offers the same key attributes as all of our legacy products including:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.


E4000 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

E250 Details

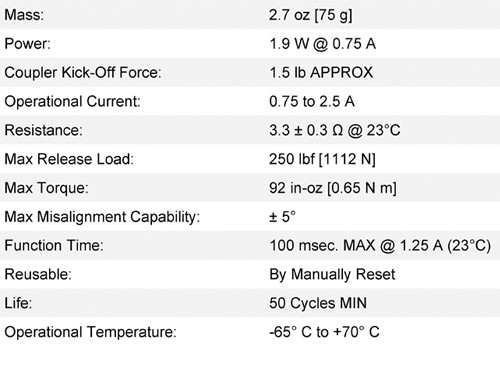

Mass 27 oz [75 g]
Power 1.9 W @ 0.75 A
Coupler Kick-Off Force 1.5 lb APPROX
Operational Current 0.75 to 2.5 A
Resistance 3.3 ± 0.3 Ω @ 23 degrees C
Max Release Load 250 lbf [1112 N]
Max Torque 92 in-oz [0.65 N m]
Max Misalignment Capability ± 0.3 degrees
Function Time 100 msec. MAX @ 1.25 A (23 degrees C)
Reusable By Manual Reset
Life 50 Cycles MIN
Operational Temperature -65 degrees C to + 70 degrees C

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

ERM Accessories

Reset Tools

The EBAD TiNi™ standard ERM is rated for a minimum life of 50 actuation and reset cycles. For continued testing, EBAD™ provides reset tools of various shapes and designs. In some cases, customers require custom reset tools to accommodate space constraints. These can be readily designed and manufactured to suit application needs.

Standard ERM reset tools come in two basic designs – A bottle opener style with folding arms and a basic jackscrew type that is turned using a “T” handle or torque wrench via a hex head. The table below provides a list of reset tools for each of our standard ERMs.

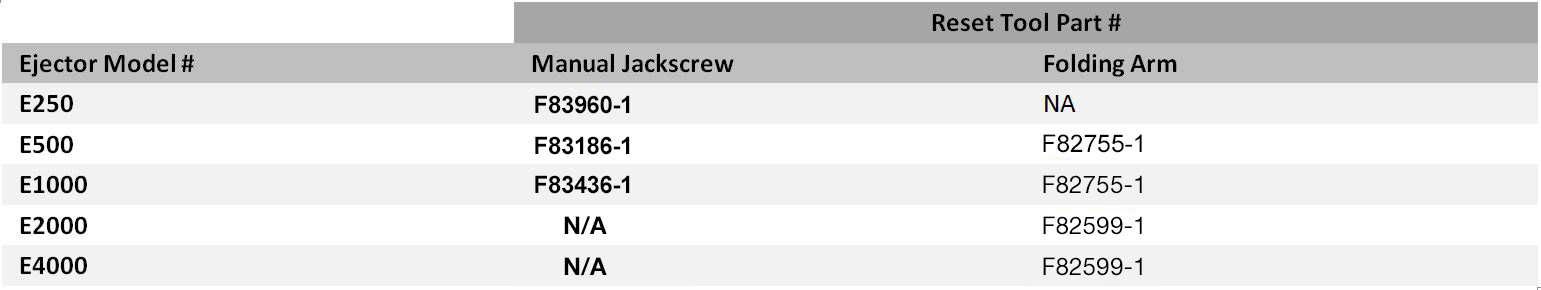

Reset Tool Details for TiNi™ ERM Options
Reset Tool Part #
Ejector Model # Manual Jackscrew Folding Arm
E250 F83960-1 NA
E500 F83186-1 F82755-1
E1000 F83436-1 F82755-1
E2000 NA F82599-1
E4000 NA F82599-1
