TiNi™ Flat Pack

Developed Specifically for “New Space” Applications

The EBAD TiNi™ Flat Pack was developed specifically for “New Space” applications such as hold down and release of solar arrays for cubesats, deployable flexible antennas and launch locks. It is small in size, fast acting, and a cost effective way to support and release preloads up to 50 lbf.

NEA® (Non-Explosive Actuators) – As with all EBAD products, the Flat Pack is non-pyrotechnic and field reset-able with a minimum qualified life of 50 cycles.

Field Reset-able and ReliableThe Flat Pack is reset by simply putting the release nut back into the device and pushing through the reset hole with a simple tool. The mechanism automatically engages with the release mut allowing immediate testing.

Fast ActingBy directly passing current through the SMA element, EBAD Micro Flat Pack performs in millisecond time frame making them ideal for instantaneous release applications.

12Vdc Bus Voltage – The Flat Pack is designed to operate from a 12 Volt bus voltage as commonly available for Cube Sat deployments and small deployables

Auto Shut-Off SwitchSimple Auto Shut Off Switch is incorporated into each Flat Pack to protect the Trigger.  This makes them very “user friendly” and operable from a wide range of current and voltages.

For pricing, or more information on how to order:

Contact Us

Flat Pack Features

The Micro Flat Latch is designed to release loads up to 50 lbf [222.4 N] and capable of supporting forces up to 100 lbf [445 N] during maximum launch conditions. Standard interface uses a 4-40 thread to attach a Bolt or Stud to the releasable Nut. As with all EBAD products, key attributes include:


  • Non Pyrotechnic and Field Reset-able
  • Maximum Reliability Thru Design Simplicity
  • Pedigree, and Testability

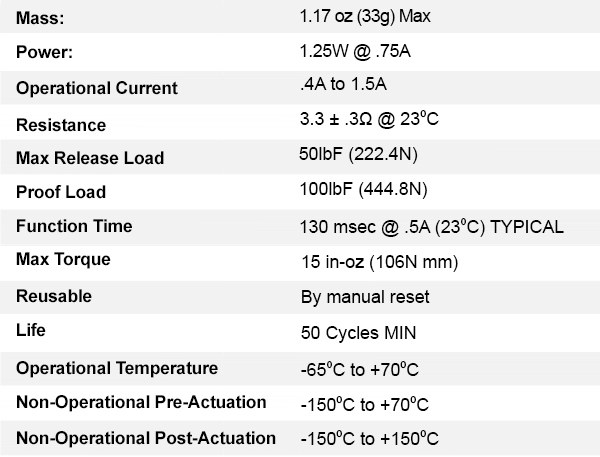

TiNi™ Flat-Pack Details
Mass 1.17 oz (33 g) MAX
Power 1.25 W @ .75 A
Operational Current .4 A to 1.5 A
Resistance 3.3 ± 0.3 Ω @ 23 degrees C
Max Release Load 50 lbf (222.4N)
Proof Load 100lbf
Function Time 130 msec. @ .5 A (23 degrees C) TYPICAL
Max Torque 15 in-0z (160N mm)
Reusable By Manual Reset
Life 50 Cycles MIN
Operational Temperature -65 degrees C to + 70 degrees C
Non-Operational Pre-Actuation -150 degrees C to +70 degrees C
Non-Operational Post-Actuation -150 degrees C to +150 degrees C
