TiNi™ Pin Puller

Fast Acting for Many Aerospace Applications

The EBAD TiNi™ Pin Puller is fast acting and suitable for a variety of Aerospace applications. Pin retraction is achieved by coupling the recovery characteristics of Shape Memory Alloys with a patented trigger mechanism. Pin Puller pull force ranges from 5 to 1000 lbf with five standard sizes offered as COTS (Commercial Off the Shelf) items.


Flight Qualified – Since its outer space debut aboard the Mars Global Surveyor spacecraft in November 1996, the TiNi™ Pinpuller has been qualified and used on numerous other space applications.

NEA (Non-Explosive Actuators) – As with all the EBAD TiNi™ products, the Pinpullers are non-pyrotechnic and field reset-able with a minimum qualified life of 100 cycles.

Field Reset-able and Reliable – The mechanism is reset by simply re-extending the output shaft or Pin which may be accessed from the front or rear of the Pinpuller.

Redundant Firing Circuit – As with all EBAD TiNi™ Actuators a redundant SMA circuit is incorporated. This provides complete electrical redundancy as well as mechanical redundancy for the critical trigger element.

Fast Acting – By directly passing current through the SMA element, the Pinpuller’s perform in millisecond time frame making them ideal for synchronized and simultaneous release of multiple tie-down payloads.

Auto Shut-Off Switches – Simple Auto Shut Off Switches are incorporated into each Pinpuller to protect the Trigger.  This makes them very “user friendly” and operable from a wide range of current and voltages.

Pin Puller Options

(Please use the tabs below to see different product options)

The P5 size Pin Puller  retracts the output pin with 5 lb (22N) of force, in a matter of milli-seconds.  It is capable of supporting applied side loads up to 100 lbf (444.8 N) during peak loading condition such as launch shock and vibration. As with all EBAD TiNi™ products, key attributes include:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Front and rear resettable
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

* Reset Tool Provided by EBAD

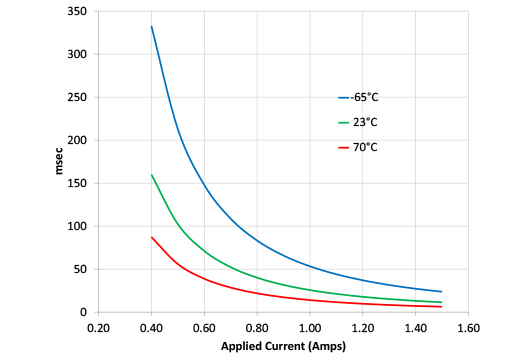

Function Time at Various Temperatures

Nominal values for reference only.


P5 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The P10 size Pin Puller  retracts the output pin with 10 lb (44N) of force, in a matter of milli-seconds.  It is capable of supporting applied side loads up to 330 lbf (1468 N) during peak loading condition such as launch shock and vibration. As with all EBAD TiNi™ products, key attributes include:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Front and rear resettable
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

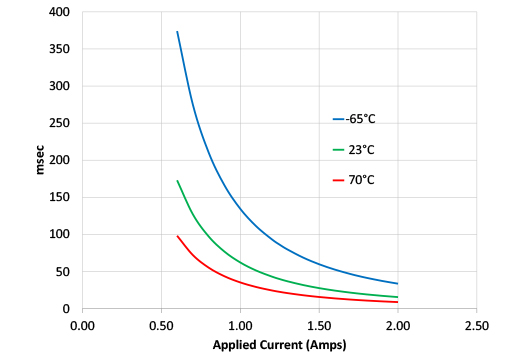

Function Time at Various Temperatures

Nominal values for reference only.


P10 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The P25 size Pin Puller  retracts the output pin with 25 lb (111 N) of force, in a matter of milli-seconds.  It is capable of supporting applied side loads up to 410 lbf (1823 N) during peak loading condition such as launch shock and vibration. As with all EBAD TiNi™ products, key attributes include:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Rear reset model available
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

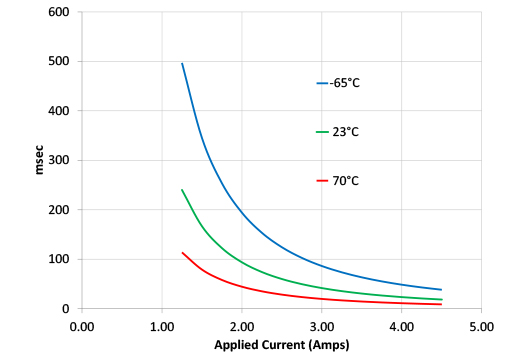

Function Time at Various Temperatures

Nominal values for reference only.

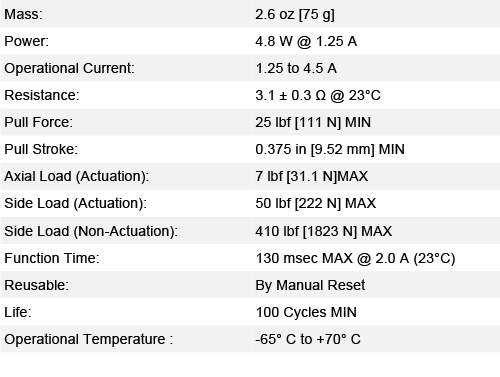

P25 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The P50 size Pin Puller  retracts the output pin with 50 lb (222N) of force, in a matter of milli-seconds.  It is capable of supporting applied side loads up to 490 lbf (2180 N) during peak loading condition such as launch shock and vibration. As with all EBAD TiNi™ products, key attributes include:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Rear reset model available
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.

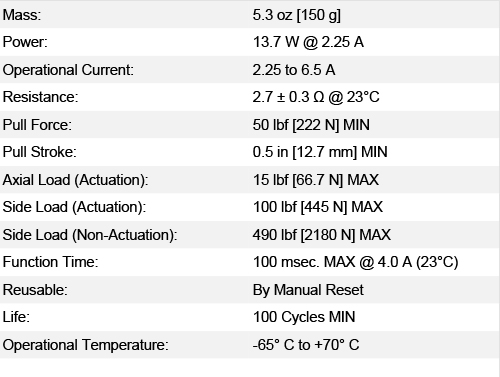

P50 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

The P100 size Pin Puller  retracts the output pin with 100 lb (445N) of force, in a matter of milli-seconds.  It is capable of supporting applied side loads up to 600 lbf (2670 N) during peak loading condition such as launch shock and vibration. As with all EBAD TiNi™ products, key attributes include:

Features:

    • Non Pyrotechnic and Field Reset-able
    • Redundant Firing Circuit
    • Maximum Reliability Thru
      • Design Simplicity
      • Pedigree, and
      • Testability

Function Time at Various Temperatures

Nominal values for reference only.

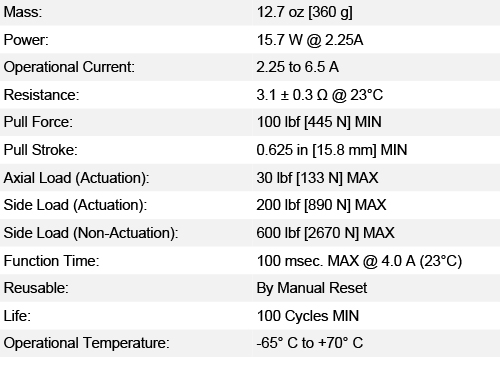

P100 Details

Specification subject to revision. Contact EBAD for detailed ICD (Interface Control Drawing).

Pin Puller Accessories

Reset Tools

All EBAD TiNi™ standard Pin Pullers are rated for a life of a minimum 100 actuation and reset cycles. For continued testing, EBAD provides reset tools of various shapes and designs – A few of which are shown in the photo to the right.

Standard Pin Puller reset tools come in two basic designs – A manual “push-pull” type that can be used to reset Pin Pullers up to 10 lbf. (ie P10), and a jack screw type that is used to reset up to 1000 lbf. All are simple to use and can be readily customized to suit application constraints.

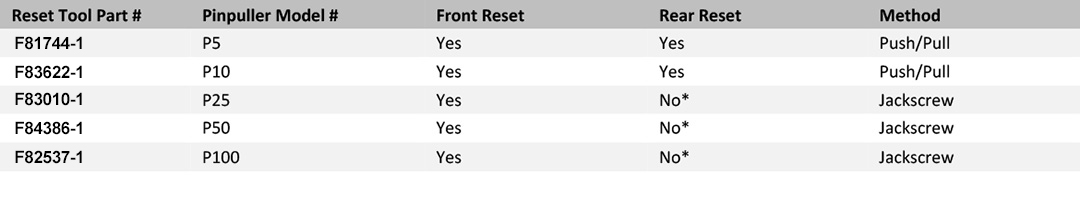

Reset Tool Details for TiNi™ Pin Puller Options

Note: Contact EBAD for detailed ICD (Interface Control Drawing).

For more information:

Contact Us

*Commercial Item per FAR 2.101
